WOM XT

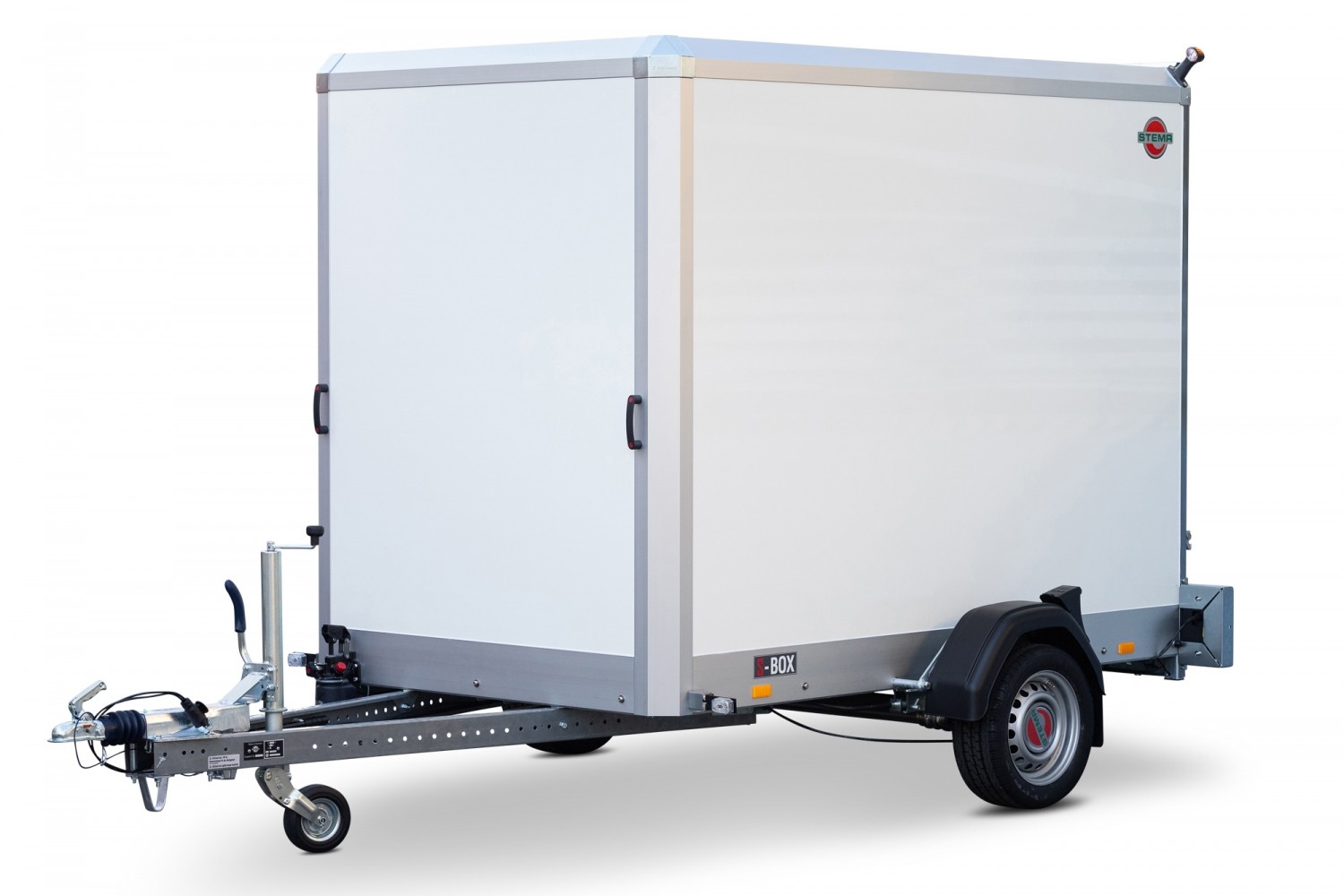

WOM XT Absenkkofferanhänger 251 x 153

STS O2 13-25-15.1 (WOMxt), hand hydraulics S-Box

Similar to its big brother WOM, the WOM XT's entire loading area is lowered and you can easily drive on at ground level with your motorcycle or other motorised equipment. Only the hydraulic lowering function is technically solved differently, so that you need one or two more steps, but the good price is to your advantage. The WOM XT can also be upgraded with side walls and high cover.

Demands for load securing

Even in the standard version, diagonal bracing from floor to ceiling is possible from any point. Other lashing solutions are available on request, which work with flexibly lockable rods and meet the very highest demands on load securing.

Castle/ Lock

The weatherproof stainless steel cover protects the lock of the espagnolette from all external factors.

Anti-theft device

Provisions have been made against theft. The hinge bolts are secured in place with a nut that cannot be opened with standard tools.

Tightness

The S-BOX already delivered excellent results for the salt water drives on the test site. In addition, each individual manufactured trailer is checked for leaks using smoke before shipment.

Position lights

The position lights are standard equipment on trailers with total widths of 1800 mm and up, and ensure that the outer contours of the trailer are clearly recognisable in the dark.

Optional adapter beams

The STEMA S-BOX offers several lashing options to transport a wide variety of goods safely. For special applications, we have developed separately available adapter beams for the use of blocking rods, which are inserted directly into our existing notch system. Thus the box walls are decoupled and do not have to be drilled, screwed or glued afterwards.

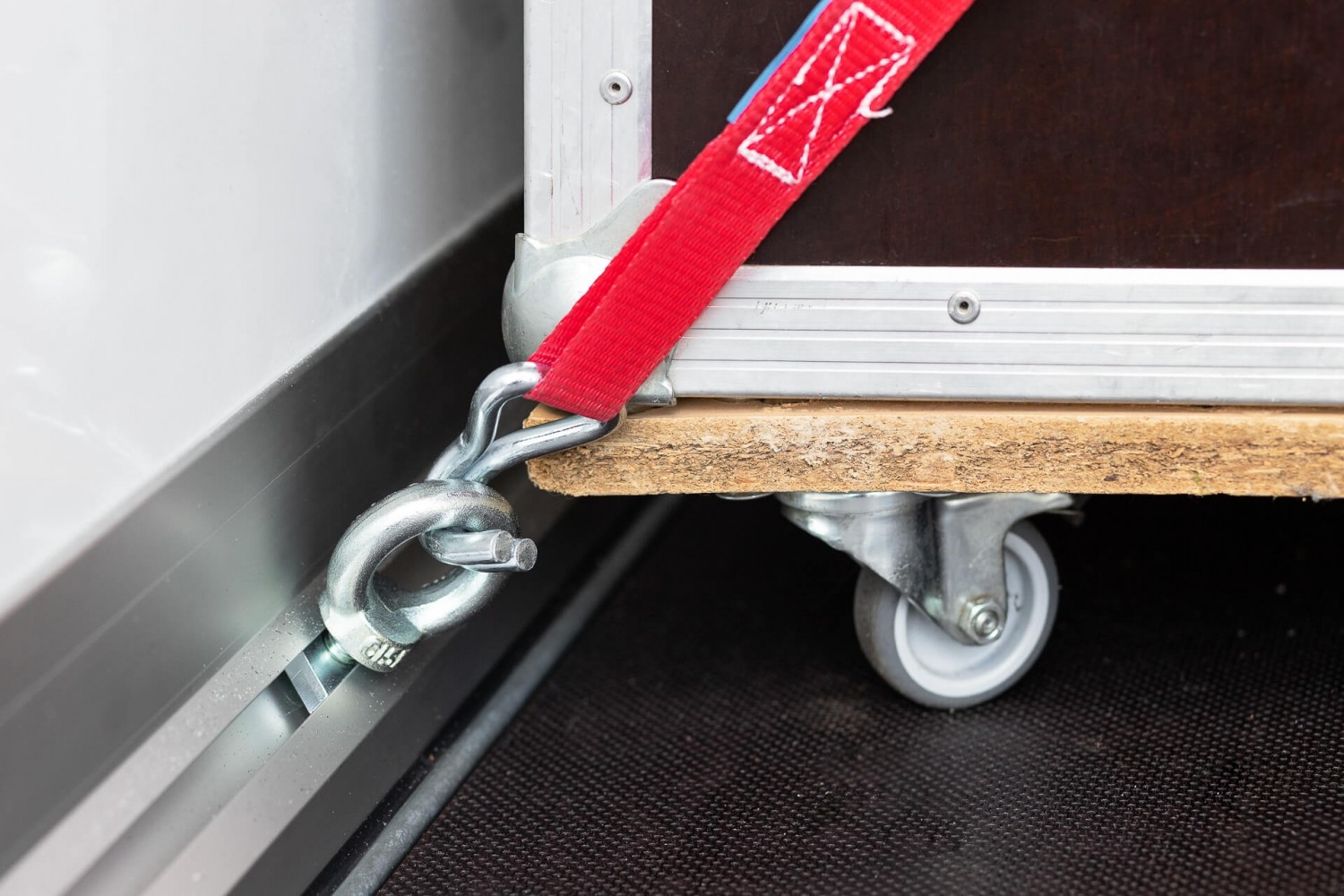

Ring screw

Eight individually adjustable ring screws allow for the the transported goods to be fixed in every position in the cargo superstructure. No tools necessary for adjusting.

Design cargo individually

The large, dimensionally stable outer surfaces of the box trailer are made to be designed according to your wishes. Simply send us your print data and we will do the rest. Our vehicle design team guarantees clean execution and impressive results.

45° angled corner

The 45° angled corners of the roof and wall beams with stamped STEMA logo round out the trailer and the new design.

Sandwich panels

The innovative 25 mm thick sandwich panel remains dimensionally stable under all weather conditions. This is ensured by the GRP planking on both sides, which encloses PET foam in a hub structure.

Chassis and frame
optimum road handling with test track-proofed chassis with STEMA safety V-drawbar Ball head coupling with safety display Partially galvanized screw-welded chassis welded and in immersion bath hot-dip galvanised frame of sturdy steel sheet incl. automatic support wheel Bumper
Hydraulik / Absenkfunktion
single-level double galvanised hydraulic cylinder with hand pump
Koffer
Layered boards 25 mm thick, core of hard foam, shell of white PVC outer skin large one-piece tailgate (opens upward) Stainless steel door hinges lockable espagnolette Espagnolette made of stainless steel Manouvering handle Aluminium beams with variable lashing points Interior aluminium access ramp
Lashing and securing options
6 ring screws in aluminium beam integrated (variably adjustable) Countless lashing possibilities
Lighting equipment
modern multi-functional lighting with backup lights With rear fog lamp 13-pole socket, EC equipment Position lights
Loading area and floor
continuous, anti-slip and waterproof screen printed wooden floor 15 mm thick additional longitudinal beam, centered
Wheels and axles
Swivel axle with new kinematics shock-resistant plastic fenders Wheel chock with holder maintenance-free compact wheel bearing

Dimensions
Platform dimensions	251 × 153 cm
Outer dimensions	428 × 225 × 243 cm
Drop side height	193 cm
Loading height	47 cm
Load and weight
Payload	735 kg
Total weight	1300 kg
Further technical data
Article number	24053.070
Rim size	13"
Material type	Sandwich (plastic)
Low / high loader	Low loader / Low loaders
Additional features	Braked Support wheel Lowerable
