ATARO

ATH 35-55-23.2 Rad 13"

Winch holder

The ATARO is a professional-grade vehicle trailer with a loading area measuring 5.50 x 2.30 m, a payload capacity of 2.5 metric tons, and a hot-dip galvanized, welded axle frame. Thanks to the convenient, one-handed central locking system for the tilting deck and standard aluminum ramps, it allows for the safe and effortless loading of passenger cars.

Rückfahrsensor

optional LED Multifunktionsbeleuchtung inkl. seitlicher Blinkfunktion (Seitenmarkierungsleuchten) und zwei Rückfahrsensoren

Holzboden

optionaler Holzboden mit Klappe vorn und hinten

Lashing points

Approx. 500 lashing points on the mounting rails, plus 20 additional combination lashing points. Maximum load per lashing point: 400 daN.

Langlochdurchzüge

für besseren Halt beim Hochfahren sowie zur Befestigung von Radanschlägen

Zentralverriegelung der Kippbrücke

patentierte Zentralverriegelung der Kippbrücke mit Entriegelungshebel

Zusatzrampen inkl. Halterung 900 x 230mm, Traglast 850kg/Rampe

content.short_description.6672

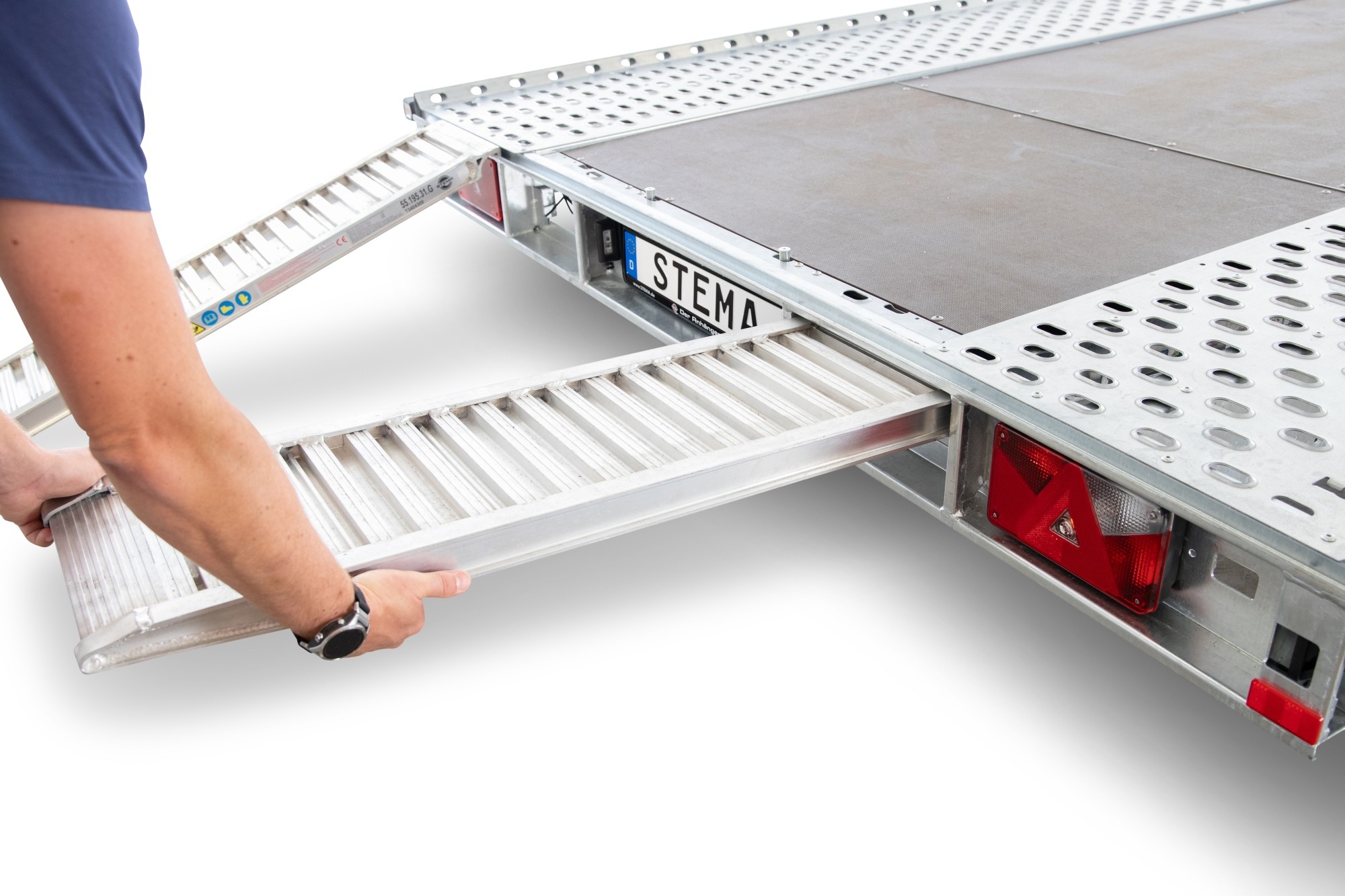

Access ramps and shafts
Aluminum loading ramps 1910 mm x 310 mm, lightweight version Auffahrwinkel Rampen ca. 5,5°
Fahrgestell & Rahmen

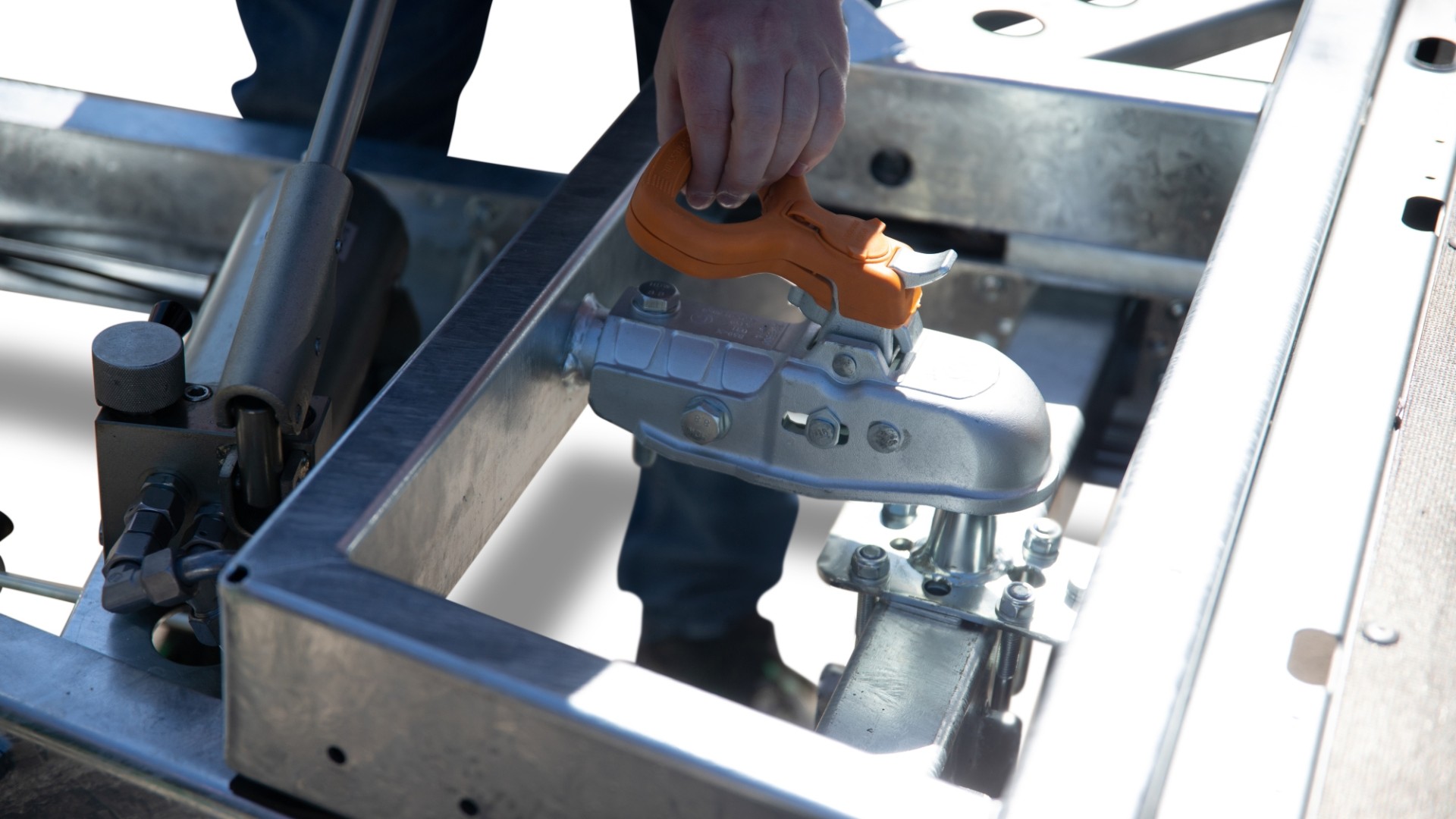

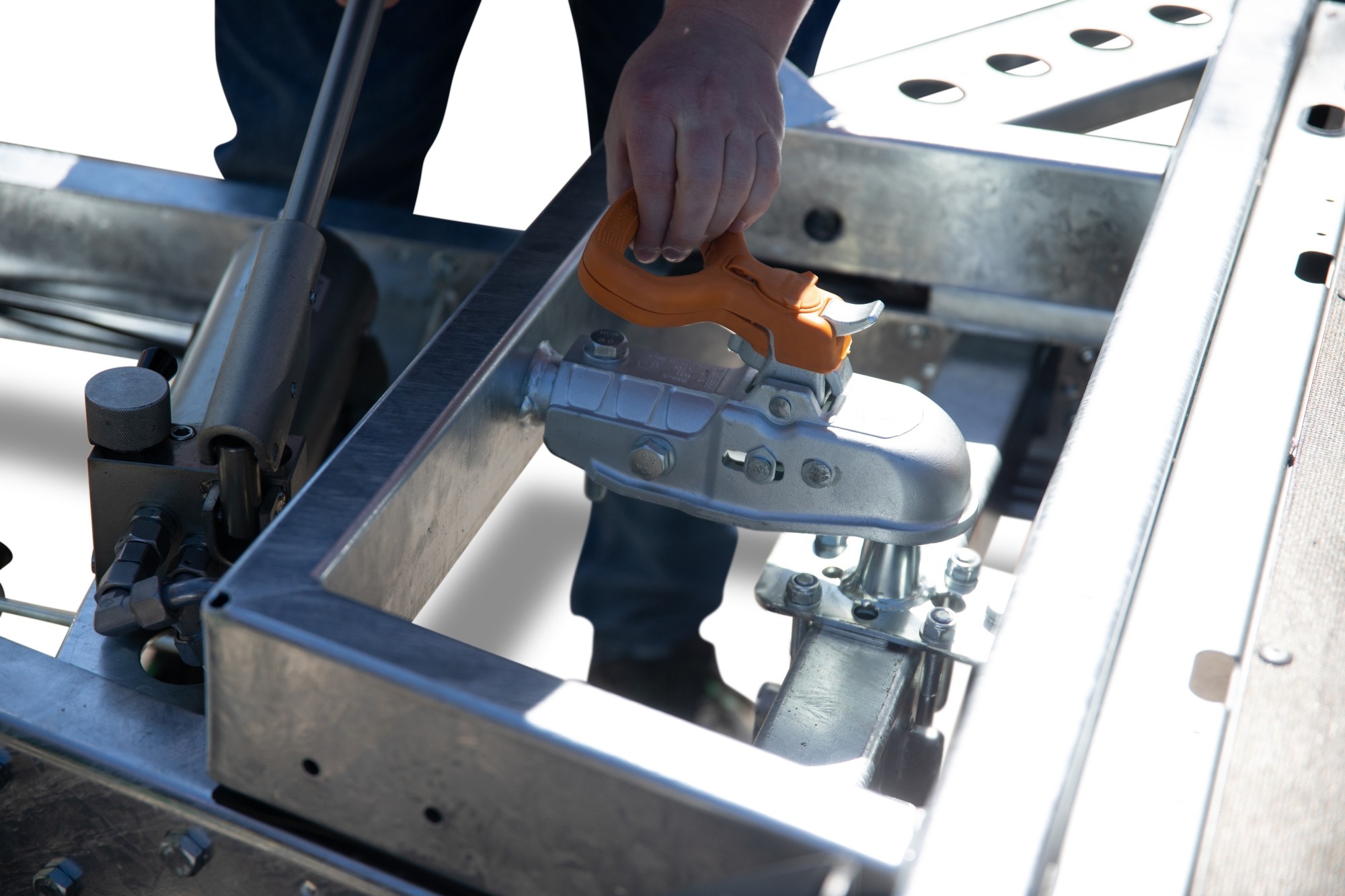

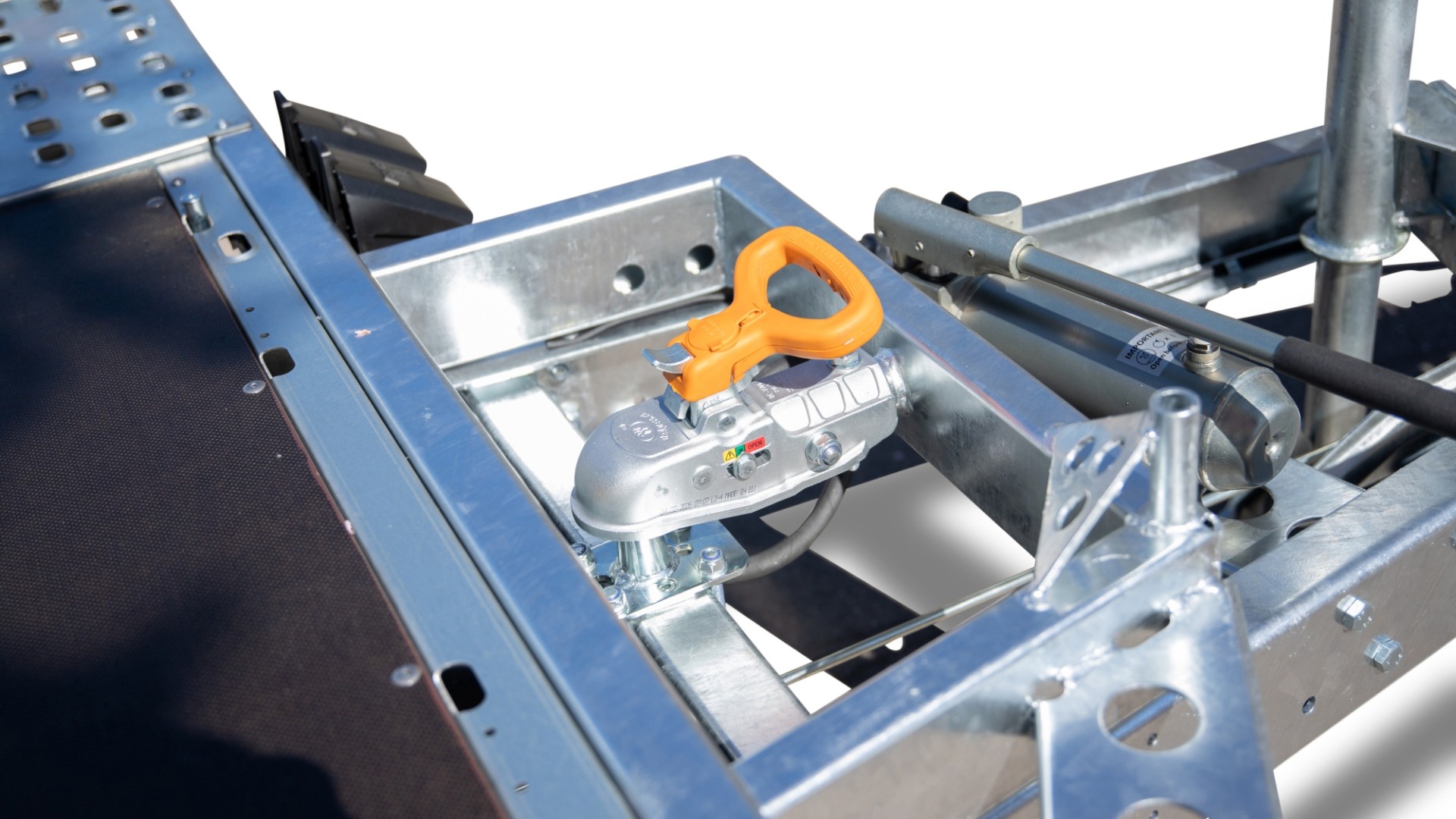

Welded axle frame, hot-dip galvanized Welded V-drawbar, hot-dip galvanized Ball head coupling with safety display robust rubber spring axle with individual wheel suspension maintenance-free compact wheel bearing Automatic heavy-duty jockey wheel 500 kg
Hydraulik / Absenkfunktion

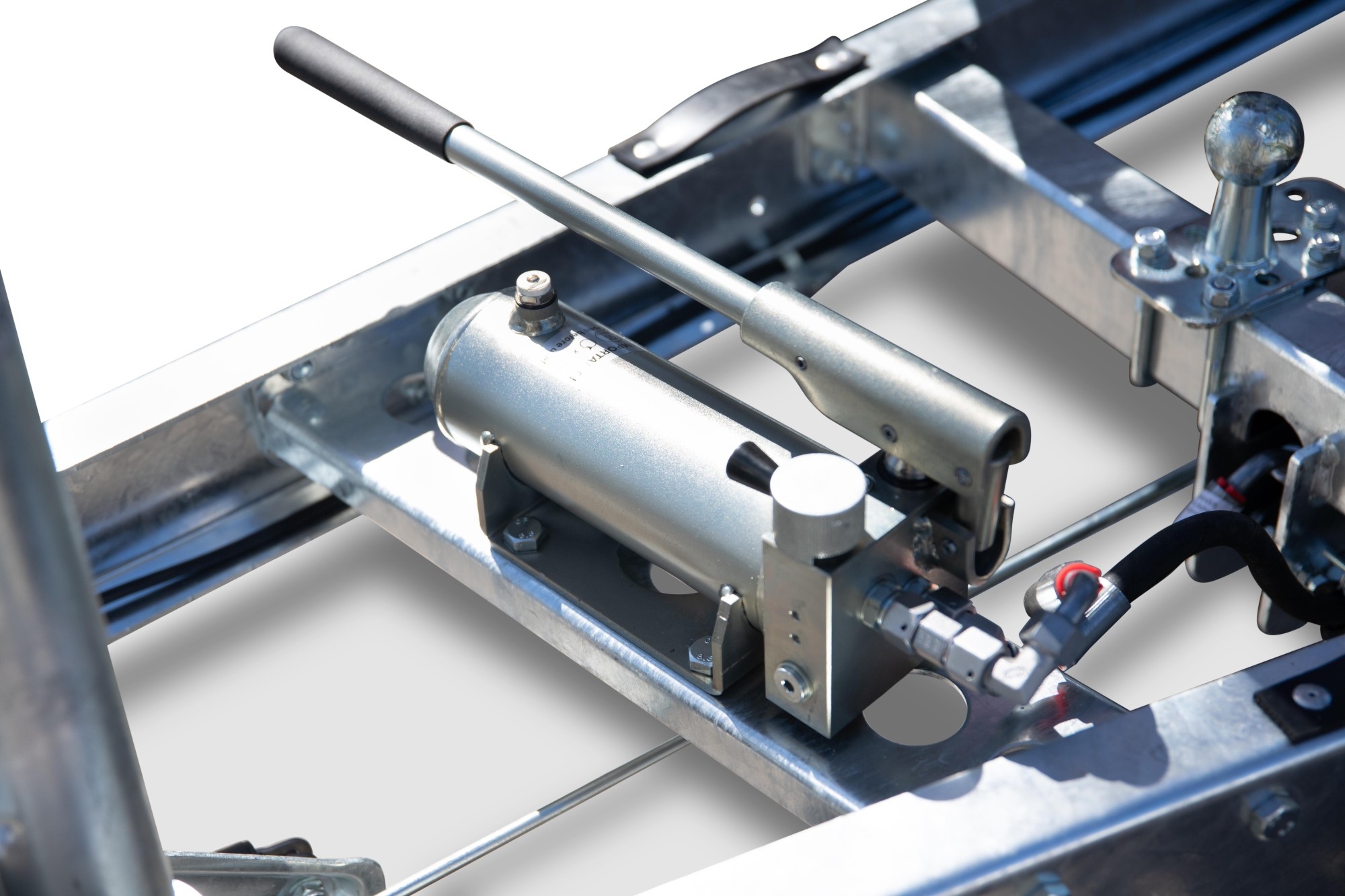

Double-acting hand pump Central locking system for the tipping body with release lever
Lighting equipment
modern multi-functional lighting Position lights with contour lights for more safety 7-pole socket, EC equipment
Loading area and floor
Approx. 500 lashing points on the transport rails, 400 daN load capacity + 20 integrated combination lashing points
Sonstiges
Winch stand on the right with a mounting for a deflection pulley.

Dimensions
Platform dimensions	550 × 230 cm
Outer dimensions	717 × 230 × 117 cm
Loading height	64 cm
Load and weight
Payload	2585 kg
Total weight	3500 kg
Further technical data
Article number	ATH32035
Rim size	13"
Low / high loader	High loader / High loaders
Additional features	Support wheel

Superstructures

Wheel stop left/right for AT 1520 and AT 2027, 1 pair

art.nr. ZT00843
passend für ATH
Weight: 14 kg

Suitable trailers

€212.00

Suggested retail price incl. VAT

Add

Vehicle transporter	Total weight	Platform dimensions	art.nr.
ATH 27-40-21.2 with access tracks 155 cm	2700 kg	400 × 203 cm	ATH31021
ATH 27-49-21.2 Winch holder	2700 kg	490 × 203 cm	ATH31020
ATH 30-40-21.2 with access tracks 155 cm	3000 kg	400 × 203 cm	ATH31025
ATH 30-49-21.2 Winch holder	3000 kg	490 × 203 cm	ATH31024
ATH 35-55-23.2 Rad 13" Winch holder	3500 kg	550 × 230 cm	ATH32035
ATH 35-55-23.3 Rad 10" Winch holder	3500 kg	550 × 230 cm	ATH32035.300

Wheel stop left/right for AT 1520 and AT 2027, 2 pairs

art.nr. ZT00844
passend für ATH
Weight: 28 kg

Suitable trailers

€418.00

Suggested retail price incl. VAT

Add

Vehicle transporter	Total weight	Platform dimensions	art.nr.
ATH 27-40-21.2 with access tracks 155 cm	2700 kg	400 × 203 cm	ATH31021
ATH 27-49-21.2 Winch holder	2700 kg	490 × 203 cm	ATH31020
ATH 30-40-21.2 with access tracks 155 cm	3000 kg	400 × 203 cm	ATH31025
ATH 30-49-21.2 Winch holder	3000 kg	490 × 203 cm	ATH31024
ATH 35-55-23.2 Rad 13" Winch holder	3500 kg	550 × 230 cm	ATH32035
ATH 35-55-23.3 Rad 10" Winch holder	3500 kg	550 × 230 cm	ATH32035.300

Attachment and assembly options ex works

Shock absorber (Knott)

art.nr. ADDON_STOSSDÄMPFER_2
Shock absorbers, 2 pairs for 2 axles

Suitable trailers

€208.00

Suggested retail price incl. VAT

Add

Vehicle transporter
Dump trailer	Total weight	Platform dimensions	art.nr.
RKE O2 20-27-15.2, hand-pump with aluminium side walls	2000 kg	271 × 153 cm	25809.020
RKE O2 20-27-15.2 with zinc side walls	2000 kg	271 × 153 cm	25809.010
RKE O2 27-27-15.2 with zinc side walls	2700 kg	271 × 153 cm	25810.010
RKE O2 27-27-15.2, hand-pump with aluminium side walls	2700 kg	271 × 153 cm	25810.020
RKE O2 30-27-15.2 with zinc side walls	2700 kg	301 × 153 cm	25811.030
RKE O2 30-27-15.2, hand-pump with aluminium side walls	2700 kg	301 × 153 cm	25811.040
SHDK O2 27-30-18.2 Zinc side wall, hand pump	2700 kg	301 × 183 cm	25900.010
SHDK O2 27-30-18.2 Aluminium side wall, hand pump	2700 kg	301 × 183 cm	25900.020
SHDK O2 27-30-18.2 2 mm steel side wall, hand pump	2700 kg	301 × 183 cm	25900.040
More
SHDK O2 27-30-18.2 E-Pump Zinc side wall, electric pump	2700 kg	301 × 183 cm	25903.010
SHDK O2 27-30-18.2 E-Pump Aluminium side wall, electric pump	2700 kg	301 × 183 cm	25903.020
SHDK O2 27-30-18.2 E-Pump 2 mm steel side wall, hand pump	2700 kg	301 × 183 cm	25903.040
SHDK O2 27-36-20.2 Zinc side wall, hand pump	2700 kg	362 × 203 cm	25936.010
SHDK O2 27-36-20.2 Aluminium side wall, hand pump	2700 kg	362 × 203 cm	25936.020
SHDK O2 27-36-20.2 2 mm steel side wall, hand pump	2700 kg	362 × 203 cm	25936.040
SHDK O2 35-30-18.2 Zinc side wall, electric pump	3500 kg	301 × 183 cm	25905.010
SHDK O2 35-30-18.2 Zinc side wall, electric pump, central tube	3500 kg	301 × 183 cm	25911.010
SHDK O2 35-30-18.2 Aluminium side wall, electric pump	3500 kg	301 × 183 cm	25905.020
SHDK O2 35-30-18.2 2 mm steel side wall, electronic pump	3500 kg	301 × 183 cm	25905.040
SHDK O2 35-30-18.2 Aluminium side wall, electric pump, central tube	3500 kg	301 × 183 cm	25911.020
SHDK O2 35-30-18.2 2mm steel side wall, electric pump, central tube	3500 kg	301 × 183 cm	25911.040
SHDK O2 35-36-18.2 Zinc side wall, electric pump, parabolic suspension	3500 kg	362 × 183 cm	25929.210
SHDK O2 35-36-18.2 2 mm steel side wall, electric pump, parabolic suspension	3500 kg	362 × 183 cm	25929.240
SHDK O2 35-36-18.2 2 mm steel side wall, electronic pump	3500 kg	362 × 183 cm	25929.040
SHDK O2 35-36-18.2 Zinc side wall, electric pump	3500 kg	362 × 183 cm	25929.010
SHDK O2 35-36-18.2 Aluminium side wall, electric pump	3500 kg	362 × 183 cm	25929.020
SHDK O2 35-36-20.2 Zinc side wall, electric pump, central tube	3500 kg	362 × 203 cm	25947.010
SHDK O2 35-36-20.2 Zinc side wall, electric pump	3500 kg	362 × 203 cm	25941.010
SHDK O2 35-36-20.2 Aluminium side wall, electric pump	3500 kg	362 × 203 cm	25941.020
SHDK O2 35-36-20.2 2 mm steel side wall, electronic pump	3500 kg	362 × 203 cm	25941.040
SHDK O2 35-36-20.2 Aluminium side wall, electric pump, central tube	3500 kg	362 × 203 cm	25947.020
SHDK O2 35-36-20.2 2mm steel side wall, electric pump, central tube	3500 kg	362 × 203 cm	25947.040
SHDK O2 35-40-20.3 2 mm steel side wall, electric pump, 3-axle trailer	3500 kg	401 × 203 cm	25965.340
SHDK O2 35-36-20.2 2 mm steel side wall, electronic pump	3500 kg	401 × 203 cm	25965.040
ATH 35-55-23.2 Rad 13" Winch holder	3500 kg	550 × 230 cm	ATH32035
Cargo trailers
SHPK O2 30-32-18.2.P20.2 Wing doors, P-Box braked, plywood with 2 x hinged doors	3000 kg	325 × 187 cm	26331.062
SHPK O2 30-32-20.2.P20.2 Wing doors, P-Box braked, plywood with 2 x hinged doors	3000 kg	325 × 207 cm	26334.062
SHPK O2 35-32-18.2.P20.2 Wing doors, P-Box braked, plywood with 2 x hinged doors	3500 kg	325 × 187 cm	26330.062
SHPK O2 35-32-20.2.P20.2 Wing doors, P-Box braked, plywood with 2 x hinged doors	3500 kg	325 × 207 cm	26333.062
SHPK O2 35-45-18.2.P20.2 Wing doors, P-Box braked, plywood with 2 x hinged doors	3500 kg	452 × 187 cm	26345.062
SHPK O2 35-45-20.2.P20.2 Wing doors, P-Box braked, plywood with 2 x hinged doors	3500 kg	452 × 207 cm	26346.062
SHPK O2 35-45-24.2.P20.2 Wing doors, P-Box braked, plywood with 2 x hinged doors	3500 kg	452 × 245 cm	26348.062
SHPK O2 35-51-20.2.P20.2 Wing doors, P-Box braked, plywood with 2 x hinged doors	3500 kg	512 × 207 cm	26356.062
SHPK O2 35-51-24.2.P20.2 Wing doors, P-Box braked, plywood with 2 x hinged doors	3500 kg	512 × 245 cm	26358.062

Winch incl. 12.5 m cable for Ataro

art.nr. ADDON_SEILWINDE_ATARO
Factory-fitted winch with automatic unspooling function, incl. 12.5 m cable 900 kg pulling force, incl. pulley
Weight: 14.5 kg

Suitable trailers

€479.00

Suggested retail price incl. VAT

Add

Vehicle transporter	Total weight	Platform dimensions	art.nr.
ATH 35-55-23.2 Rad 13" Winch holder	3500 kg	550 × 230 cm	ATH32035
ATH 35-55-23.3 Rad 10" Winch holder	3500 kg	550 × 230 cm	ATH32035.300

wooden floor for ATARO (5,50m)

art.nr. ADDON_BODEN ATARO (5,50M)
Factory-fitted wooden floor for ATARO (5.50 m), incl. front and rear flaps
Weight: 62 kg

Suitable trailers

€488.99

Suggested retail price incl. VAT

Add

Vehicle transporter	Total weight	Platform dimensions	art.nr.
ATH 35-55-23.2 Rad 13" Winch holder	3500 kg	550 × 230 cm	ATH32035
ATH 35-55-23.3 Rad 10" Winch holder	3500 kg	550 × 230 cm	ATH32035.300

LED package incl. reversing sensors

art.nr. ADDON_LED-PAKET_ATARO
LED multifunction lights including side turn signal function (side marker lights) and dual reversing sensors integrated into the flashing outline marker lights (detection radius 2 m; angles: 20° outward, 40° inward, 30° upward)

Suitable trailers

€559.00

Suggested retail price incl. VAT

Add

Vehicle transporter	Total weight	Platform dimensions	art.nr.
ATH 35-55-23.2 Rad 13" Winch holder	3500 kg	550 × 230 cm	ATH32035
ATH 35-55-23.3 Rad 10" Winch holder	3500 kg	550 × 230 cm	ATH32035.300

Ataro add-on ramps incl. mounting bracket

art.nr. ADDON_ZUSATZRAMPEN_ATARO
Factory-fitted auxiliary ramps incl. mounting bracket 900 x 230 mm, load capacity 850 kg/ramp
Weight: 17.2 kg

Suitable trailers

€548.99

Suggested retail price incl. VAT

Add

Vehicle transporter	Total weight	Platform dimensions	art.nr.
ATH 35-55-23.2 Rad 13" Winch holder	3500 kg	550 × 230 cm	ATH32035
ATH 35-55-23.3 Rad 10" Winch holder	3500 kg	550 × 230 cm	ATH32035.300

ATARO spare wheel carrier, incl. wheel and cover (10")

art.nr. ADDON_RAD+HALTER 13 ZOLL
Set bestehend aus: - werkseitig montierter Ersatzradhalter - Ersatzrad 195/50 R13C - Radabdeckung in grau
Weight: 26 kg

Suitable trailers

€249.00

Suggested retail price incl. VAT

Add

Vehicle transporter	Total weight	Platform dimensions	art.nr.
ATH 35-55-23.2 Rad 13" Winch holder	3500 kg	550 × 230 cm	ATH32035

Usable dimensions (L x W)	550 × 230 cm

	Total weight	Payload	External dimensions (L x W x H)	Rim size
NEW ATH 35-55-23.3 Rad 10" Winch holder	3500 kg	2530 kg	717 × 230 × 117 cm	10"	More
