Main cable / cable harness 13-pole coupling socket
Sample image
The main cable is equipped with a black 13-pole socket. From this casing, two cable harnesses with bayonet connections (left + right) go directly to the rear taillights. The cable length varies according to the trailer model and size.
- Main cable 5.0 m incl. 13-pole socket and 2 x 3.0 m DC output socket = replacement for 7- and 13- pole cable with 0.2 m output (The plug from the position lights cable must be cut off in order to connect this cable, with the help of a DC-connector, to the new replacement main cable.)
The cable clasps in silver (Art.-Nr. ET0013259) or plastic (Art.-Nr. ET36076009) are available for purchase in sets of 10.
- with 13-pole coupling socket
- Cable harnesses for rear light with bayonet connection
Downloads:
available Article / Articles
| Name | Price incl. VAT | |
|---|---|---|
 Main cable 3.5 m incl. 13-pole coupling socket and 10 cable clamps
| €69.50 | |
| Main cable 7.5 m 13-pol. 2 x 4.0m with DC output
| €73.90 | |

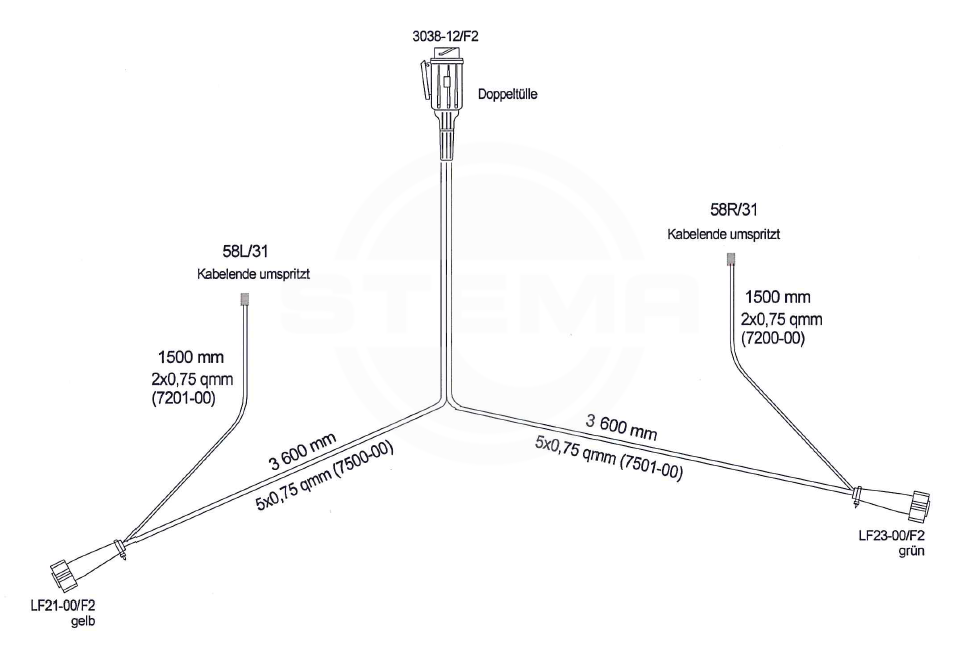

 Hauptkabel 3,6 m 13-pol. 2 x 1,5m mit DC-Abgang
| €89.30 | |

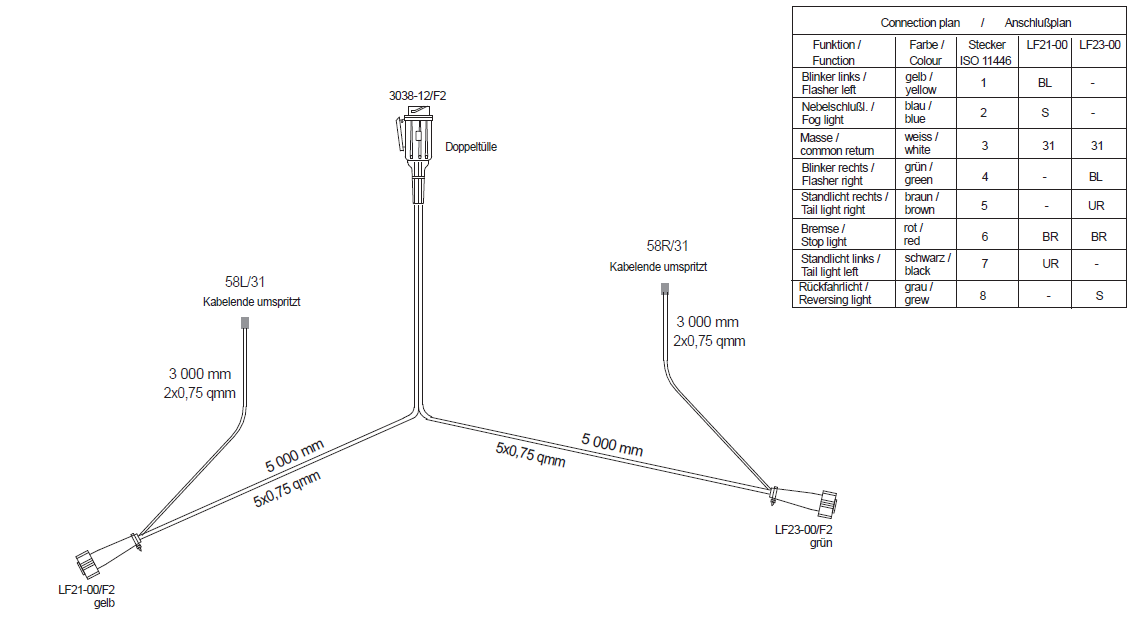

 Main cable 5.0 m incl. 13-pole coupling socket and 2 x 3.0 m DC-output plug
| €94.60 | |

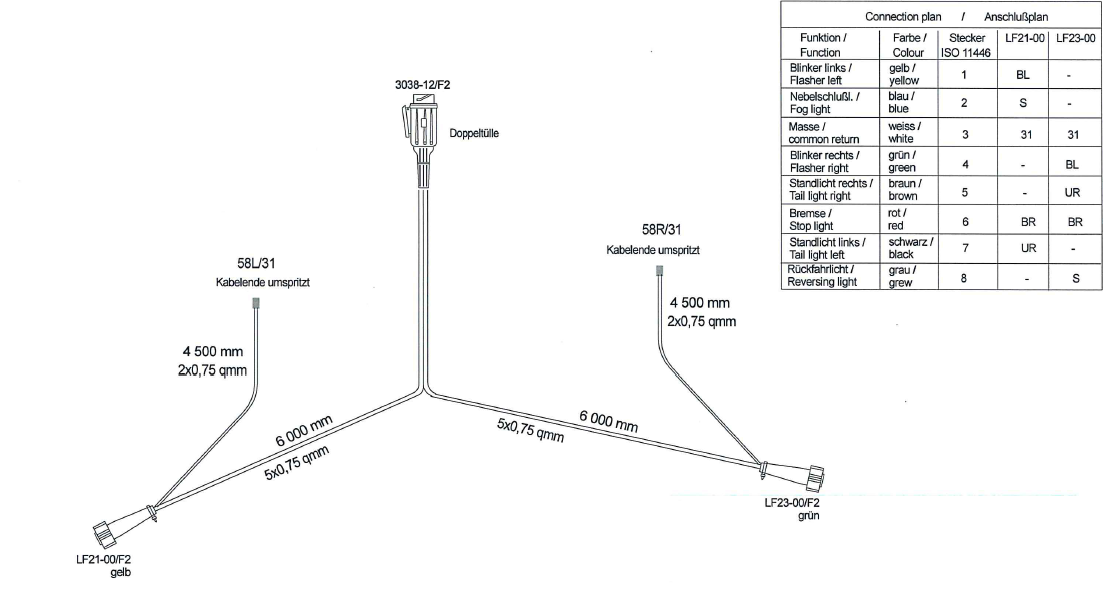

 Main cable 6.0 m 13-pol. 2 x 4.5m with DC output
| €103.49 | |
 Main cable 5.0 m incl. 13-pole coupling socket and 2 x 0.1 m DC-output plug, as well as 1 x 3.30 m battery charging cable
| €112.90 | |

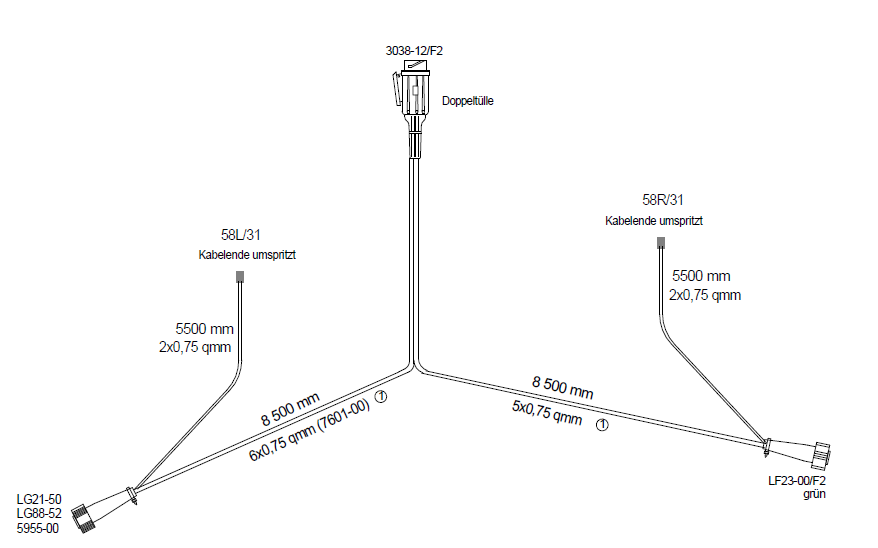

 Main cable 8.5 m 13-pole 2 x 5.5m with DC output
| €140.50 | |
Similiar Products
Subject to errors and changes! • plus shipping costs, delivery is done with GLS / Spedition Emons
